MVC vs MVP Architectures: A Complete Guide

MVC vs MVP Architectures: A Complete Guide

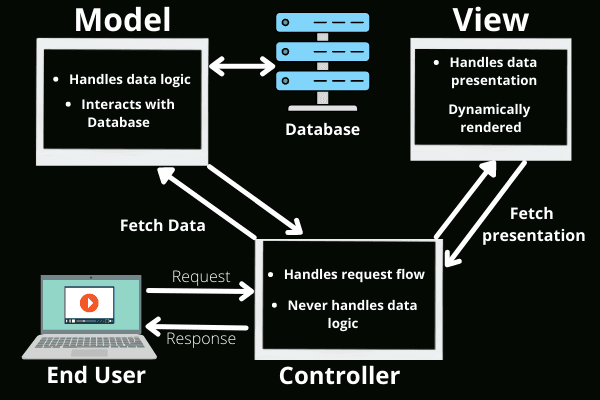

What is MVC (Model-View-Controller)?

• Model: Manages data and business logic
• View: Handles the user interface and presentation
• Controller: Acts as an intermediary between Model and View, handling user input

How MVC Works

1. User interacts with the View
2. Controller receives the input and processes it
3. Controller updates the Model if needed
4. Model notifies the View of changes
5. View updates to reflect the new state

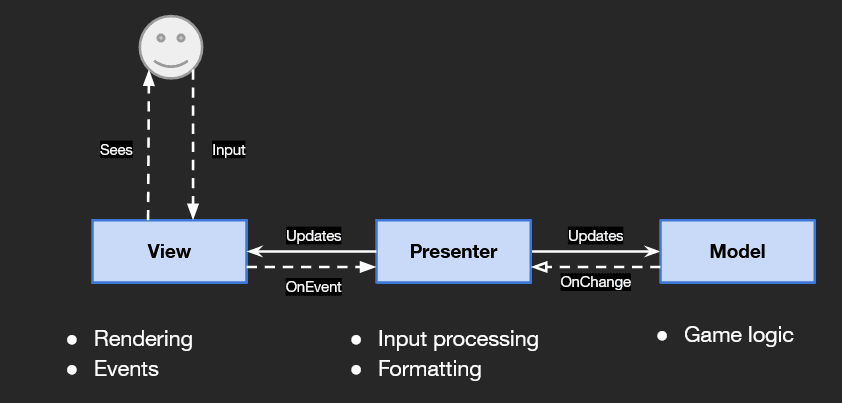

What is MVP (Model-View-Presenter)?

• Model: Same as in MVC - manages data and business logic
• View: Passive interface that displays data and forwards user actions
• Presenter: Contains the presentation logic and acts as an intermediary

How MVP Works

1. User interacts with the View
2. View forwards the action to the Presenter
3. Presenter processes the logic and updates the Model
4. Presenter updates the View directly
5. View displays the updated information

Key Differences Between MVC and MVP

Pros and Cons

MVC Advantages

• Separation of Concerns: Clear division of responsibilities
• Reusability: Components can be reused across different parts
• Parallel Development: Teams can work on different components simultaneously
• Easy Maintenance: Changes in one layer don't affect others
• Well-Established: Widely adopted with extensive documentation

MVC Disadvantages

• Tight Coupling: View and Model can become tightly coupled
• Complex Navigation: Managing navigation between views can be complex
• Testing Challenges: UI testing can be difficult due to View-Model dependencies
• Scalability Issues: Can become unwieldy in large applications

MVP Advantages

• Better Testability: View is passive, making unit testing easier
• Loose Coupling: View and Model are completely decoupled
• Clear Responsibilities: Presenter handles all presentation logic
• Easier Mocking: View interfaces can be easily mocked for testing
• Better Separation: Cleaner separation between UI and business logic

MVP Disadvantages

• Increased Complexity: More interfaces and abstractions
• Presenter Bloat: Presenter can become large and complex
• Performance Overhead: Additional layer can impact performance
• Learning Curve: More complex to understand and implement initially

When to Use MVC or MVP

• Web Applications: Perfect for web frameworks like ASP.NET MVC, Spring MVC
• Rapid Prototyping: When you need to build something quickly
• Small to Medium Projects: Where complexity is manageable
• Team Familiarity: When your team is already familiar with MVC
• Framework Support: When using frameworks that naturally support MVC

// Example: Simple MVC structure in JavaScript
class Model {
    constructor() {
        this.data = []
        this.observers = []
    }

    addObserver(observer) {
        this.observers.push(observer)
    }

    notifyObservers() {
        this.observers.forEach((observer) => observer.update())
    }
}

class View {
    update() {
        // Update UI based on model changes
    }
}

class Controller {
    constructor(model, view) {
        this.model = model
        this.view = view
    }

    handleUserInput(input) {
        // Process input and update model
        this.model.updateData(input)
    }
}

• Desktop Applications: Ideal for WinForms, WPF applications
• Mobile Development: Great for Android development
• High Testability Requirements: When extensive unit testing is crucial
• Complex UI Logic: When presentation logic is complex
• Long-term Maintenance: For applications that need to be maintained long-term

// Example: MVP structure in Android
public interface View {
    void showData(String data);
    void showError(String error);
}

public class Presenter {
    private View view;
    private Model model;

    public Presenter(View view, Model model) {
        this.view = view;
        this.model = model;
    }

    public void loadData() {
        try {
            String data = model.getData();
            view.showData(data);
        } catch (Exception e) {
            view.showError(e.getMessage());
        }
    }
}

Best Practices

For MVC

• Keep controllers thin and focused
• Use dependency injection for better testability
• Implement proper error handling
• Follow naming conventions consistently

For MVP

• Keep views passive and dumb
• Use interfaces for better abstraction
• Implement proper lifecycle management
• Consider using MVP frameworks like Mosby
